smart metering solutions for your homes and businesses.
our range of smart meters and energy management tools are designed to meet the diverse needs of Nigerian consumers and businesses. explore our products to find the perfect fit for efficient, secure energy management.

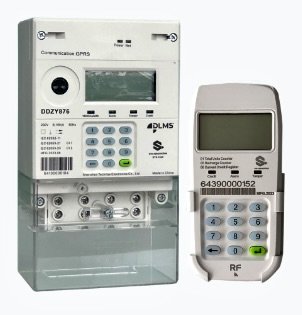

1P2W SPLIT STS SMART METER WITH PLUG-IN COMM (4G)
-
Pluggable communication module(4G/GPRS/RF/PLC).
Consisting of two parts, the MCU(Metering & Control Unit) + CIU( Customer Interface Unit)
Ideal for households and small businesses, providing accurate billing, real-time monitoring, and user-friendly energy management.
-
DLMS/COSEM standard compliant.
IEC62056-21 compliant optical port &VTC allowing for easy data interrogation.
Operate in both prepayment and postpayment.
Measurement of electrical parameters (Active energy, reactive power, current, voltage, maximum demand.)
Programmable load limit and low credit warning.
Detection and record event such as opening main cover&terminal cover, current reverse, bypass, phases&neutral interchangeable, neutral missing, phase missing, power outage, magnetic disturbance,last gasp.
Plug-in type communication 4G/GPRS/RF/PLC.
Digits: 6 integers + 2 decimal.
With replaceable battery.
-
Pluggable communication module(4G/GPRS/RF/PLC).
Replaceable battery.

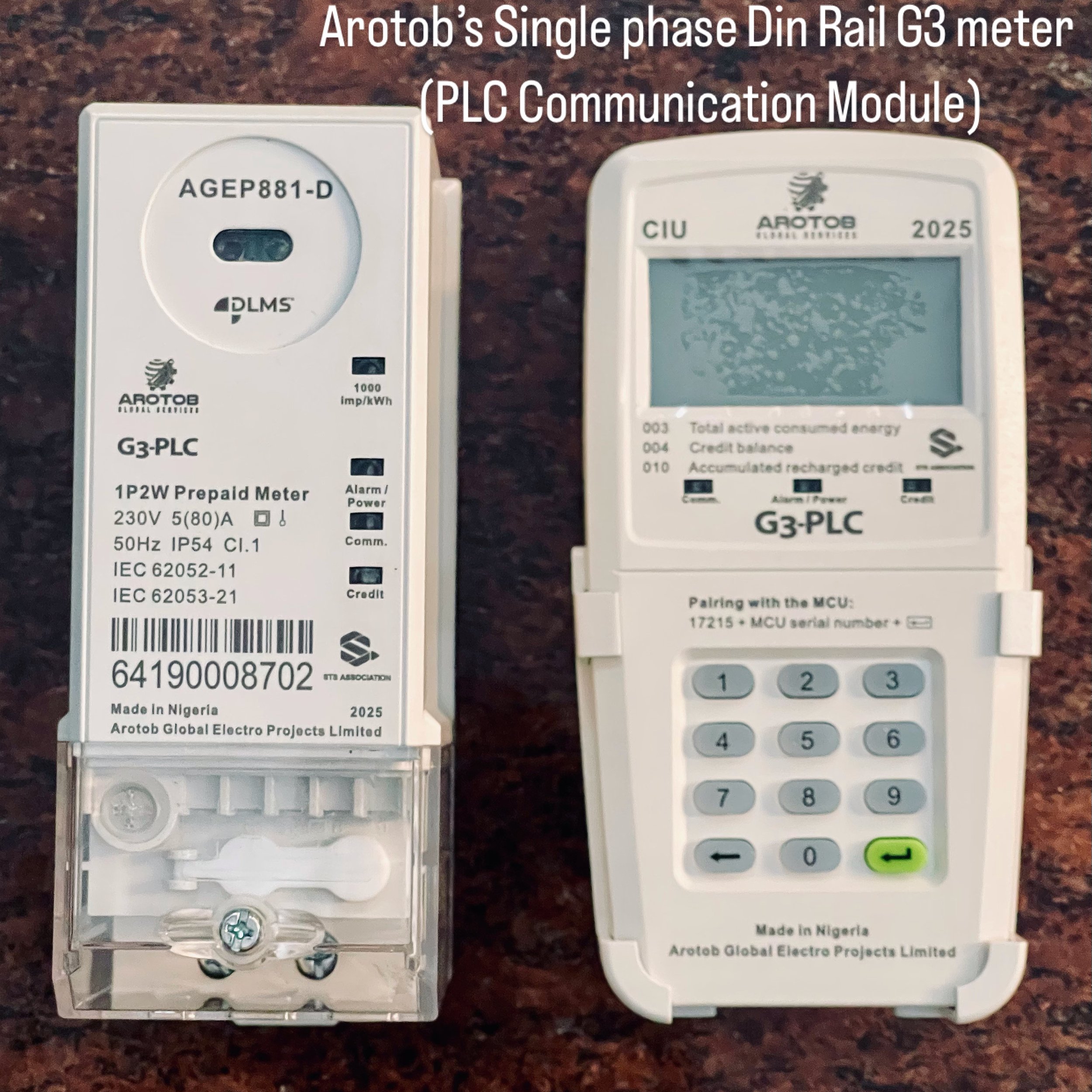

AGEP881-D G3-1P2W DIN RAIL SPLIT STS METER WITH (PLC)
-
The DDZY876 is used for a wide range of smart prepaid metering applications. Is split type, consisting of two parts, the MCU(Metering & Control Unit) and CIU( Customer Interface Unit). The CIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
-
DLMS/COSEM standard compliant.
IEC62056-21 Compliant optical port allowing for easy data interrogation.
Operate in both prepayment and postpayment.
Measurement of electrical parameters (Active energy, power, current, voltage, etc.)
Programmable load limit and low credit warning.
Detection and record tamper event such as opening main cover&terminal cover, current reverse.
Will cut off the power supply in case of overload after 5 minutes duration, no credit, opening main cover&terminal cover.
Downlink communication (between MCU and CIU) is M-Bus/RF/PLC,uplink communication would be RF/PLC.
Digits: 6 integers + 2 decimal
MCU LED indicators(1000imp/kWh, credit, alarm, comm)
CIU LED indicators( M-Bus/PLC: 1000imp/kWh, credit, alarm; RF: credit, alarm, comm)
-
To be updated soon

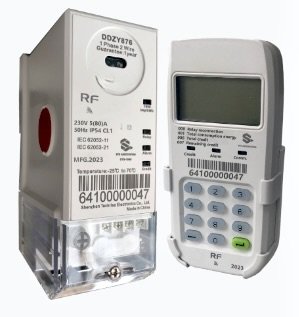

DDZY876-DG12 1P2W DIN RAIL SPLIT STS METER WITH RF
-
The DDZY876 is used for a wide range of smart prepaid metering applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 100 Amp and extended functional features. Is split type, consisting of two parts, the MCU(Metering & Control Unit) and CIU( Customer Interface Unit). The CIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
-
DLMS/COSEM standard compliant
IEC62056-21 compliant optical & VTC port allowing for easy data interrogation
Disconnects on overload and no credit
Operate in both prepayment and credit
Programmable load limit and low credit warning
Detection and record tamper event such as opening main cover&terminal cover, current reverse, missing neutral, bypass, power down
Downlink communication (between MCU and CIU) is RF
Digits: 6 integers + 2 decimal
Ultrasonic welding for main cover and base
-
ITEMS & PARAMETERS
Nominal voltage (Un): 120/220/230V
Limited voltage: 70% ~ 120% Un
Nominal frequency (Fn): 50 /60 Hz
Tolerance: 5%
Basic current (Ib): 5A
Maximum current (Imax): 60/80/100A
Starting current (lst): 20mA
Active energy constant: 1000 imp/kWh
Active energy to IEC 62053 - 21: Class 1.0
Voltage circuit burden: <1.4W <9VA
Current circuit burden: <2.5VA
Operation temperature: -25℃ ~ +70 ℃
Storage temperature: -40℃ ~ +85 ℃
AC tension: 4kv/ rms 1min
Voltage impulse withstand: 6kV 1.2/50 us
Insulation system classification: Class II
Contact discharge: 8kV
Air discharge: 15kV
MCU dimensions: 140*58*90mm
CIU dimensions: 127.5*63.4*30mm
Fast transient burst test: 4kV
Meter Shell Protection Rate: IP66
Terminals: Bottom in and bottom out
3P4W SPLIT STS SMART METER WITH PLUG -IN COMM (4G)
-
Pluggable communication module(4G/GPRS/RF/PLC).
Consisting of two parts, the MCU(Metering & Control Unit) + CIU( Customer Interface Unit)
Built for larger installations such as commercial and industrial facilities, offering advanced energy management, multi-tariff options, and anti-fraud protection.
-
DLMS/COSEM standard compliant.
IEC62056-21 compliant optical port &VTC allowing for easy data interrogation.
Operate in both prepayment and postpayment.
Measurement of electrical parameters (Active energy, reactive power, current, voltage, maximum demand.)
Programmable load limit and low credit warning.
Detection and record event such as opening main cover&terminal cover, current reverse, bypass, phases&neutral interchangeable, neutral missing, phase missing, power outage, magnetic disturbance,last gasp.
Downlink communication (between MCU and CIU) is RF/PLC, uplink communication 4G/GPRS/RF/PLC.
Digits: 6 integers + 2 decimal.
With replaceable battery.
-
ITEMS & PARAMETERS
Nominal voltage(Un): 3X220/380V,3X230/400V
Limited voltage: 60%~120%Un
Nominal frequency(Fn): 50/60Hz
Tolerance: 5%
Basic current(Ib): 5A
Maximum current(Imax): 100A
Starting current(Ist): 30mA
Active energy constant: 1000imp/kWh
Measurement Accuracy: Class1.0
Voltage circuit burden : <2W <8VA
Current circuit burden: <1VA
Operation Temperature: -25℃ to+70℃
Storage Temperature: -40℃ to+85℃
Insulation level: 4kV rms 1min
Voltage impulse withstand: 6kV 1.2/50 μs
Insulation System Classification: Class II
Contact discharge: 8kV
Air discharge: 15kV
27MHz to 500MHz typical: 10V/m
100kHz to 1GHz typical: 30V/m
Fast transient burst test: 4kV
Meter shell Protection Rate: IP54
Maximum cable size: 10 mm
Connection diagram: AABBCCNN/ABCNNCBA
SINGLE PHASE METER BOX(GFRP)
-
Be of glass fiber reinforced polyester;
The materials used can be self-extinguishing at 960 ° C and resistant to heat above 125 ° C and ultra violet rays.
It is equipped with a window transparent for meter reading.
The mechanical protection index to be associated with IK10.
Protection: high degree of protection IP54.
Meter fixing: Presence of a device for fixing single-phase meter&the circuit breaker.
Installation mode : Wall or pole mounting
-
ITEMS & PARAMETERS
Material: Glass fiber reinforced polyester
On /off: A triangle sealable
Input/output: With cable gland, 2 inputs / outputs 70mm2sections
Capacity: 1 single phase meter+1 MCB
Degree of protection: IP54
Accessories: For fixing energy meters and modular distribution block.
Fixing system: 3 bosses for 1 meter box
Suitable for: 50Hz or 60Hz
Nominal voltage: 120V, 220V, 230V, 380V, 690V
Nominal current: For 10A~225A power supply system, for single-phase electric energy and power measurement and control management of electric energy
Ambient temperature: -25℃~+50℃
Average temperature: within 24 hours does not exceed ±35℃
Relative humidity: not exceed 80% at 40°C, and the lower temperature allows higher relative humidity;
SINGLE PHASE METER BOX(GFRP)
-
Be of glass fiber reinforced polyester;
The materials used can be self-extinguishing at 960 ° C and resistant to heat above 125 ° C and ultra violet rays.
It is equipped with a window transparent for meter reading.
The mechanical protection index to be associated with IK10.
Protection: high degree of protection IP54.
Meter fixing: Presence of a device for fixing single-phase meter&the circuit breaker.
Installation mode : Wall or pole mounting
-
ITEMS & PARAMETERS
Material: Glass fiber reinforced polyester
On /off: A triangle sealable
Input/output: With cable gland, 2 inputs / outputs 70mm2sections
Capacity: 1 single phase meter+1 MCB
Degree of protection: IP54
Accessories: For fixing energy meters and modular distribution block.
Fixing system: 3 bosses for 1 meter box
Suitable for: 50Hz or 60Hz
Nominal voltage: 120V, 220V, 230V, 380V, 690V
Nominal current: For 10A~225A power supply system, for single-phase electric energy and power measurement and control management of electric energy
Ambient temperature: -25℃~+50℃
Average temperature: within 24 hours does not exceed ±35℃
Relative humidity: not exceed 80% at 40°C, and the lower temperature allows higher relative humidity;
DDZY876-DG12 1P2W DIN RAIL SPLIT STS METER WITH MBUS
-
The DDZY876 is used for a wide range of smart prepaid metering applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 100 Amp and extended functional features. Is split type, consisting of two parts, the MCU(Metering & Control Unit) and CIU( Customer Interface Unit). The CIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
-
DLMS/COSEM standard compliant.
IEC62056-21 Compliant optical port allowing for easy data interrogation.
Operate in both prepayment and postpayment.
Measurement of electrical parameters (Active energy, power, current, voltage, etc.)
Programmable load limit and low credit warning.
Detection and record tamper event such as opening main cover&terminal cover, current reverse.
Will cut off the power supply in case of overload after 5 minutes duration, no credit, opening main cover&terminal cover.
Downlink communication (between MCU and CIU) is M-Bus/RF/PLC,uplink communication would be RF/PLC.
Digits: 6 integers + 2 decimal
MCU LED indicators(1000imp/kWh, credit, alarm, comm)
CIU LED indicators( M-Bus/PLC: 1000imp/kWh, credit, alarm; RF: credit, alarm, comm)
-
ITEMS & PARAMETERS
Nominal voltage(Un): 120/220/230V
Limited voltage: 70% ~ 120% Un
Nominal frequency(Fn): 50/60 Hz
Tolerance: 5%
Basic current (Ib): 5A
Maximum current (Imax): 60/80/100A
Starting current (lst): 20mA
Active energy constant: 1000 imp/kWh
Active energy to IEC 62053 - 21: Class 1.0
Voltage circuit burden: <1.4W <9VA
Current circuit burden: <2.5VA
Operationtemperature: -25℃ ~ +70 ℃
Storage temperature: -40℃ ~ +85 ℃
AC tension: 4kv/ rms 1min
Voltage impulse withstand: 6kV 1.2/50 us
Insulation system classification: Class II
Contact discharge: 8kV
Air discharge: 15kV
MCU dimensions: 140*58*90mm
CIU dimensions: 127.5*63.4*30mm
Fast transient burst test: 4kV
Meter Shell Protection Rate: IP66
Terminals: Bottom in and bottom out.
DTZY876-CG31 3P4W STS METER WITH RF/PLC/M-BUS
-
The DTZY876 is used for a wide range of smart prepaid metering applications,with keypad to input TOKEN
-
DLMS/COSEM standard compliant.
IEC62056-21 Compliant optical port allowing for easy data interrogation.
Operate in both prepayment and postpayment.
Measurement of electrical parameters (Active energy, power, current, voltage, etc.)
Programmable load limit and low credit warning.
Detection and record tamper event such as opening main cover&terminal cover, current reverse.
Will cut off the power supply in case of overload after 5 minutes duration, no credit, opening main cover&terminal cover.
Built communication module RF/PLC/M-BUS.
Digits: 6 integers + 2 decimal
LED indicators(1000imp/kWh, 1000imp/kvarh, credit, alarm, comm)
-
To be updated soon! Please bear with us.
THREE PHASE METER BOX(GFRP)
-
Main Features:
Be of glass fiber reinforced polyester;
The materials used can be self-extinguishing at 960 ° C and resistant to heat above 125 ° C and ultra violet rays.
It is equipped with a window transparent for meter reading.
The mechanical protection index to be associated with IK10.
Protection: high degree of protection IP54.
Meter fixing: Presence of a device for fixing three-phase meter&the circuit breaker.
Installation mode : Wall or pole mounting.
-
ITEMS & PARAMETERS
Material: Glass fiber reinforced polyester
On /off: A triangle sealable
Input/output: With cable gland, 2 inputs / outputs 70mm2sections
Capacity: 1 three phase meter+1 MCB
Degree of protection: IP54
Accessories: For fixing energy meters and modular distribution block.
Fixing system: 3 bosses for 1 meter box
Suitable for: 50Hz or 60Hz
Nominal voltage: 120V, 220V, 230V, 380V, 690V
Nominal current: For 10A~225A power supply system, for single-phase electric energy and power measurement and control management of electric energy
Ambient temperature: -25℃~+50℃
Average temperature: within 24 hours does not exceed ±35℃
Relative humidity: not exceed 80% at 40°C, and the lower temperature allows higher relative humidity;
Our expert services cover every aspect of meter installation and energy management, providing seamless, customized solutions to optimize energy usage and ensure fair and secure billing.
Smart Meter Installation
We provide seamless installation of single-phase and three-phase smart meters, with reliable after-service support to ensure continued performance and effective energy management.
Prepaid & Postpaid Solutions
Flexible metering solutions designed to make energy management simple & convenient. Our options allow customers to easily monitor their usage and manage payments, whether through prepaid or postpaid plans, giving them greater control over their energy consumption.
Anti-Tamper Protection
We provide state-of-the-art anti-fraud features to safeguard against energy theft, ensuring fair and transparent usage for all customers. These robust protections help maintain system integrity and promote a secure, equitable energy experience.
Remote Monitoring
We provide seamless installation of single-phase and three-phase smart meters, with reliable after-service support to ensure continued performance and effective energy management.
Customized Meter Configuration
We provide customized programming and configuration services to align with various tariff structures and communication protocols, ensuring enhanced system compatibility and seamless integration.
Why Choose Our Products & Services
At Arotob Global Services, we combine advanced technology, industry expertise, and a deep understanding of Nigeria’s energy landscape to deliver smart metering solutions that are reliable, efficient, and secure. Our commitment to quality and customer satisfaction ensures you get the best possible energy management experience.
